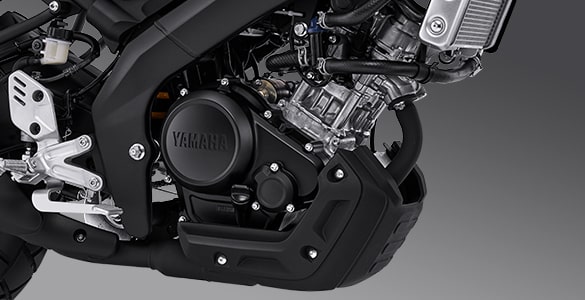

| Tipe Mesin | Liquid cooled, 4-Stroke, SOHC, 4 Valves, VVA |
| Jumlah / Posisi Silinder | Silinder Tunggal |
| Diameter x Langkah | 58,0 x 58,7 mm |
| Perbandingan Kompresi | 11,6 : 1 |
| Daya Maksimum | 14.2 kW/ 10000 rpm |
| Torsi Maksimum | 14.7 Nm/ 8500 rpm |
| Sistem Starter | Elektrik Starter |
| Sistem Pelumasan | Basah |
| Kapasitas Oli Mesin | Total = 1,50 L ; Berkala = 0,85 L ; Ganti Filter oli = 0,95 L |
| Sistem Bahan Bakar | Fuel Injection |
| Volume Silinder | 155 cc |
| Tipe Kopling | Wet Type Multi-Plate Clutch; Assist & Slipper Clutch |
| Tipe Transmisi | Manual |
| Pola Pengoperasian Transmisi | 1-N-2-3-4-5-6 |
| Tipe Rangka | Deltabox |
| Suspensi Depan | Telescopic Fork (Inverted) |

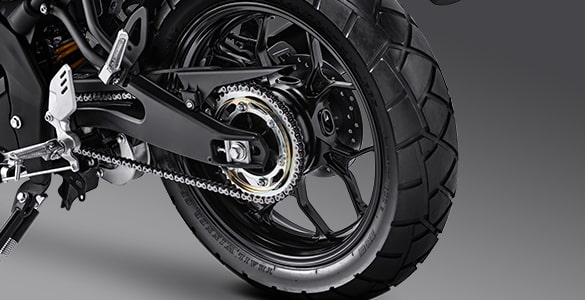

| Suspensi Belakang | Link Monoshock |
| Ban Depan | 110/70-17M/C (54S) |
| Ban Belakang | 140/70-17M/C (66S) |
| Rem Depan | Disc Brake |
| Rem Belakang | Disc Brake |
| P X L X T | 2007 X 804 X 1080 |
| Jarak Sumbu Roda | 1330 mm |
| Jarak Terendah Ke Tanah | 170 mm |

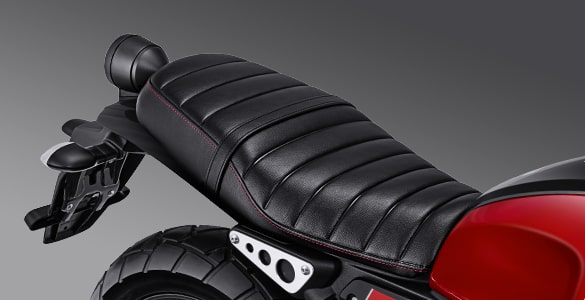

| Tinggi Tempat Duduk | 810 mm |
| Berat Isi | 134 kg |

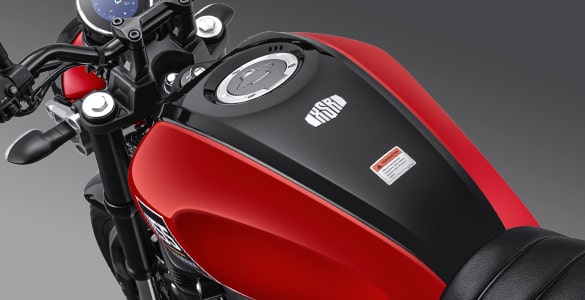

| Kapasitas Tangki Besin | 10.4 Liter |
| Sistem Pengapian | TCI/Transistor |
| Battery | YTZ4V |
| Tipe Busi | MR8E9 |
