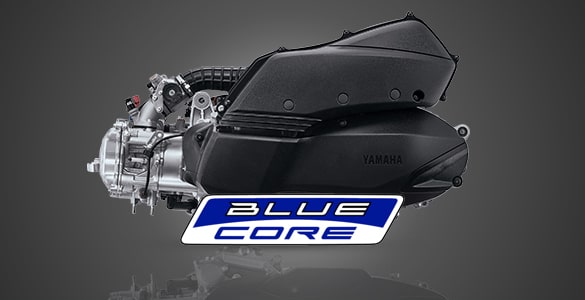

| Tipe Mesin | Liquid Cooled, 4-Stroke, SOHC, 4 Valve, VVA |
| Sistem Bahan Bakar | Fuel Injection |
| Tipe Kopling | Dry, Centrifugal Automatic |
| Tipe Transmisi | V-belt Automatic |
| Jumlah / Posisi Silinder | Single Cylinder |
| Volume Silinder (CC) | 249.8 cc |
| Diameter x Langkah | 70.0 mm X 64.9 mm |
| Perbandingan Kompresi | 10.5 : 1 |
| Daya Maksimum | 16.8kW / 7000 rpm |
| Torsi Maksimum | 24.3 Nm / 5500 rpm |
| Sistem Starter | Elektrik Starter |
| Sistem Pelumasan | Wet Sump |
| Kapasitas Oli Mesin | Total = 1.7 L ; Berkala = 1.5 L |
| Tipe Rangka | Backbone |
| Suspensi Depan | Telescopic Fork |
| Suspensi Belakang | Unit Swing |
| Ban Depan | 120/70-15M/C 56P |
| Ban Belakang | 140/70-14M/C 62P |

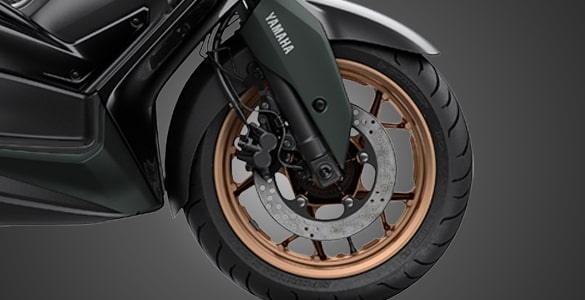

| Rem Depan | Disc Brake |
| Rem Belakang | Disc Brake |
| P X L X T | 2180 mm x 795 mm x 1460 mm |
| Jarak Sumbu Roda | 1540 mm |
| Jarak Terendah Ke Tanah | 135 mm |
| Tinggi Tempat Duduk | 795 mm |
| Berat Isi | 181 kg |
| Kapasitas Tangki Besin | 13 Liter |
| Sistem Pengapian | TCI |
| Battery | GTZ8V |
| Tipe Busi | NGK/ LMAR8A-9 |
Please do not hesitate to contact us if you would like more information regarding prices and availability
