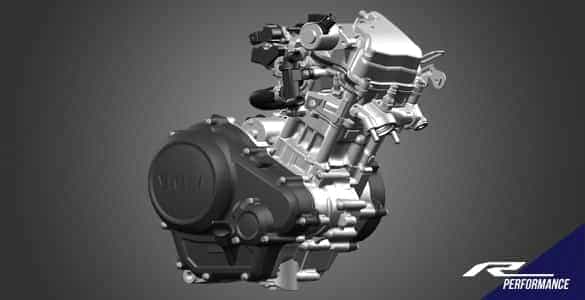

| Tipe Mesin | Liquid Cooled, 4-Stroke, SOHC, 4 Valve, VVA |
| Sistem Bahan Bakar | Fuel Injection |

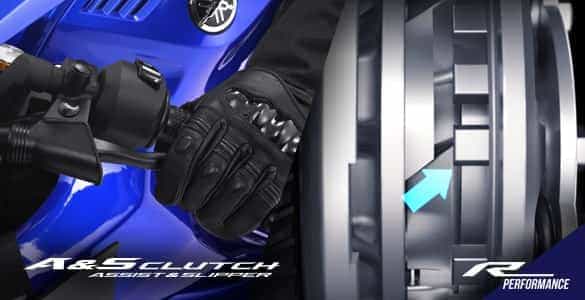

| Tipe Kopling | Multi Wet Clutch |
| Tipe Transmisi | Manual |
| Jumlah / Posisi Silinder | Single Cylinder |
| Isi Silinder (CC) | 155.09 cc |
| Diameter x Langkah | 58.0 x 58.7 mm |
| Perbandingan Kompresi | 11.6 ± 0.4 : 1 |
| Daya Maksimum | 14.2 kW / 10000 rpm |
| Torsi Maksimum | 14.7 Nm / 8500 rpm |

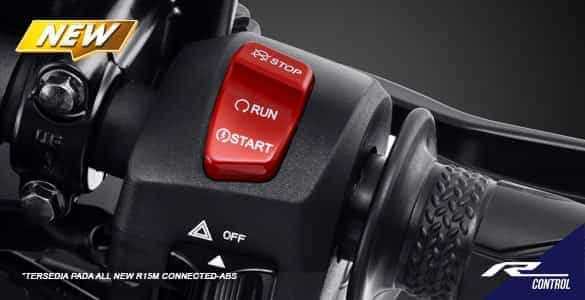

| Sistem Starter | Elektrik Starter |
| Sistem Pelumasan | Wet Sump |
| Kapasitas Oli Mesin | Total =1.15L; Berkala = 0.85L; Ganti Filter Oli = 0.95L L |

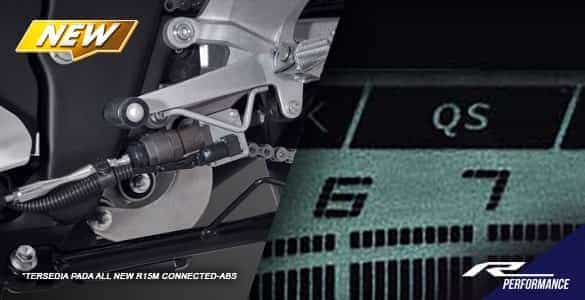

| Pola Pengoperasian Transmisi | 1-N-2-3-4-5-6 |

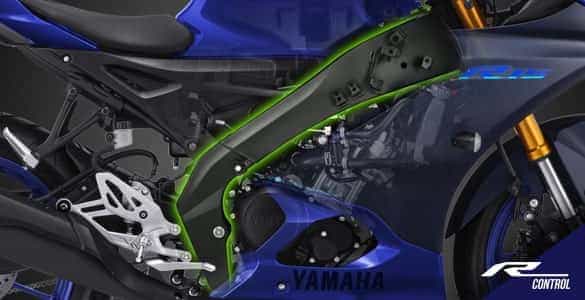

| Tipe Rangka | Deltabox |

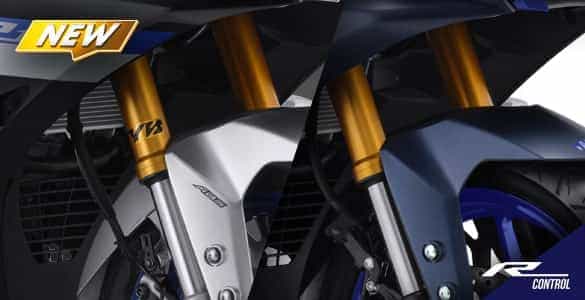

| Suspensi Depan | Telescopic Fork (Inverted) |

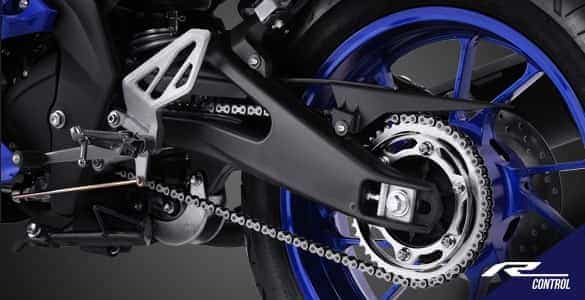

| Suspensi Belakang | Link Monoshock |
| Ban Depan | 100/80-17M/C 52P |
| Ban Belakang | 140/70-17M/C 66S |

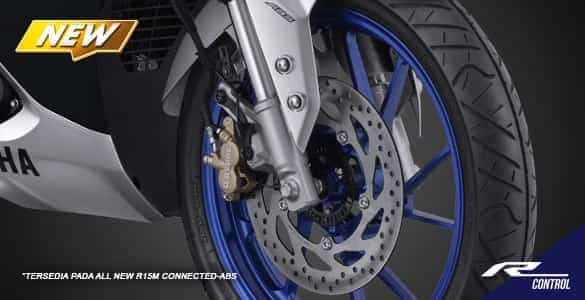

| Rem Depan | Disc Brake |
| Rem Belakang | Disc Brake |
| P X L X T | 1990 x 725 x 1135 mm |
| Jarak Sumbu Roda | 1325 mm |
| Jarak Terendah Ke Tanah | 170 mm |

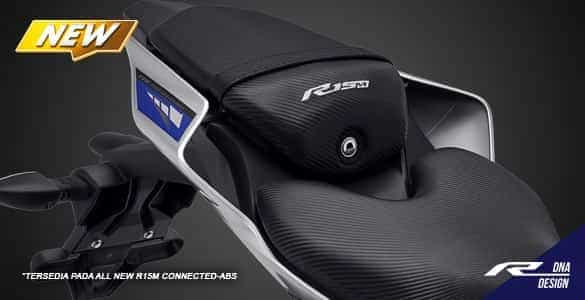

| Tinggi Tempat Duduk | 815 mm |
| Berat Isi | 137 Kg (All New R15), 140 Kg (All New R15M) |
| Kapasitas Tangki Besin | 11 Liter |
| Sistem Pengapian | TCI |
| Battery | GTZ4V/YTZ4V (All New R15), YTZ6V (All New R15M) |
| Tipe Busi | MR8E9 |
