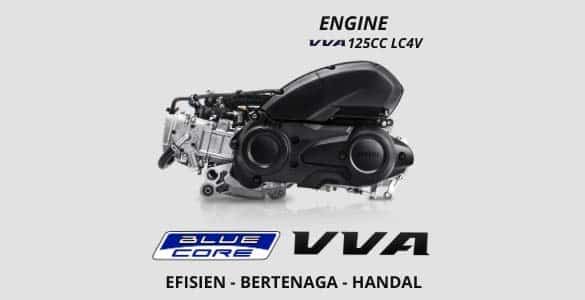

| Tipe Mesin | Liquid Cooled 4-stroke, SOHC |
| Sistem Bahan Bakar | Fuel Injection |
| Tipe Kopling | Dry, Centrifugal Automatic |
| Tipe Transmisi | V-belt Automatic |
| Jumlah / Posisi Silinder | Single Cylinder |
| Volume Silinder (CC) | 124.7 cc |
| Diameter x Langkah | 52 x 58.7 mm |
| Perbandingan Kompresi | 11.2±0.4 |
| Daya Maksimum | 8.75 kW / 8000 rpm |
| Torsi Maksimum | 11.3 Nm / 7000 rpm |
| Sistem Starter | Elektrik Starter |
| Sistem Pelumasan | Wet Sump |
| Kapasitas Oli Mesin | Total = 1.00 L ; Berkala = 0.90 L |
| Tipe Rangka | Underbone |
| Suspensi Depan | Telescopic Fork |

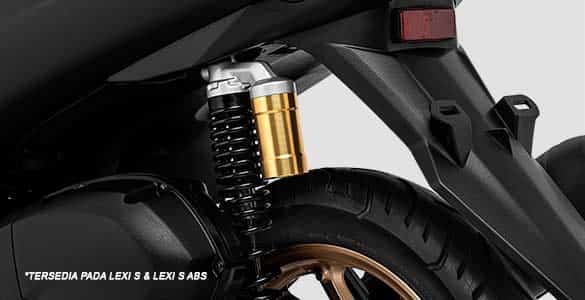

| Suspensi Belakang | Unit Swing |

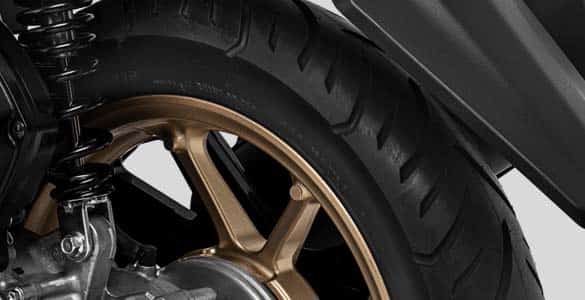

| Tipe Ban | Tubeless |
| Ban Depan | 90/90-14M/C 46P |
| Ban Belakang | 100/90-14M/C 57P |

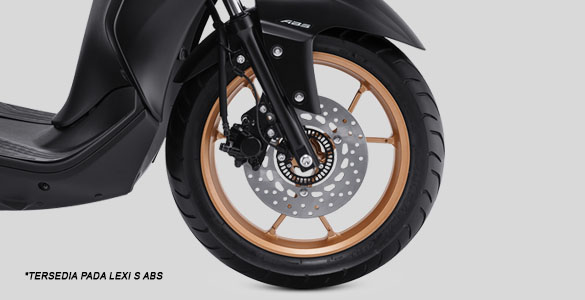

| Rem Depan | Disc ABS (S ABS Version), Disc (S & Standard Version) |
| Rem Belakang | Drum |
| P X L X T | 1970 mm x 720 mm x 1135 mm |
| Jarak Sumbu Roda | 1350 mm |
| Jarak Terendah Ke Tanah | 133 mm |
| Tinggi Tempat Duduk | 785 mm |
| Berat Isi | 114 kg (S ABS, S Version), 112 Kg (Standard Version) |
| Kapasitas Tangki Besin | 4,2 Liter |
| Sistem Pengapian | TCI |
| Battery | YTZ7V |
| Tipe Busi | CPR8EA-9/U24EPR-9 |
